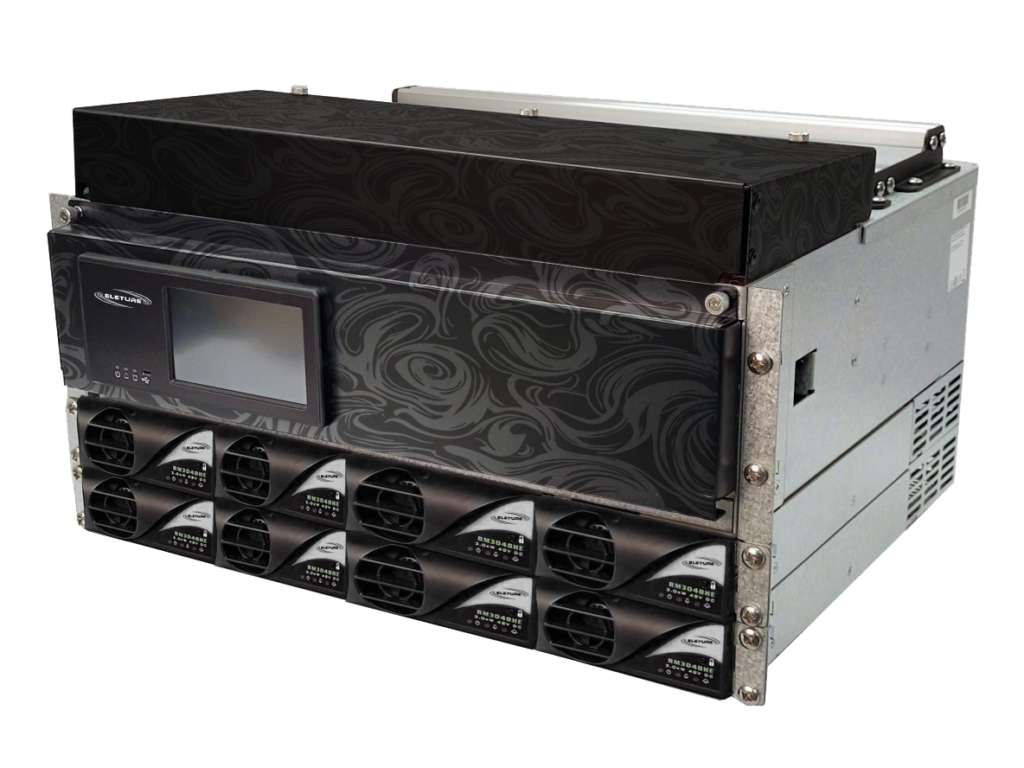

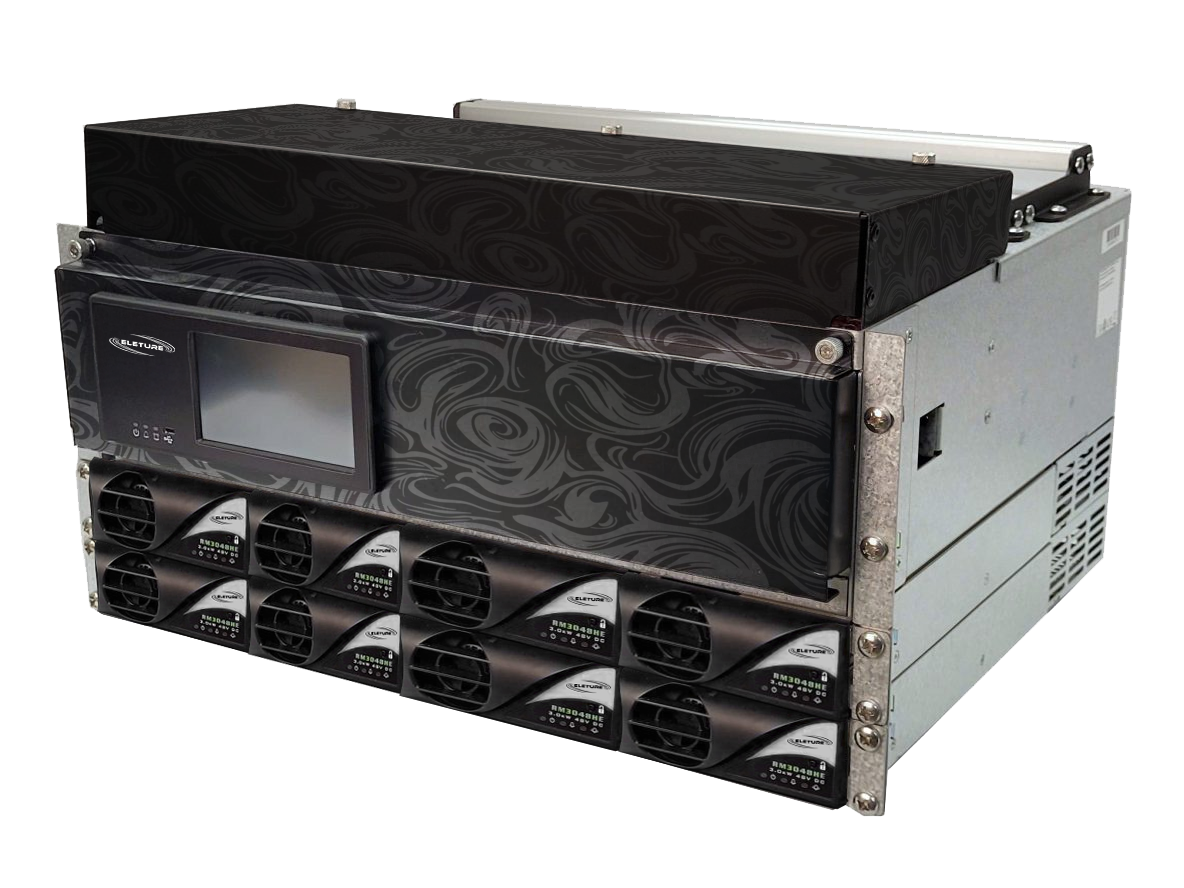

Praetor Ziva

Power That Evolves With Your Mission

Praetor Ziva is a high-capacity DC power platform engineered for demanding infrastructure where reliability, scalability, and operational visibility are essential.

Delivering up to 24 kW of power, Ziva combines modular rectification, intelligent monitoring, integrated distribution, and flexible expansion capabilities in a platform designed to adapt as power requirements evolve.

BUILT TO SCALE. DESIGNED TO PERFORM.

Modern infrastructure rarely stands still. Power requirements expand, equipment changes, and new technologies become part of the system.

Praetor Ziva is designed around that reality. Its modular architecture provides a flexible foundation that can expand beyond conventional rectification to support additional power capacity, DC-DC conversion, and solar integration.

High-Capacity Power

Deliver up to 24 kW and 480 A of total system output for demanding -48 VDC applications.

Modular Architecture

Eight power bays support 3 kW modular rectifiers, providing a flexible approach to system capacity.

Intelligent Monitoring

Local and web-based management provide access to system data, alarms, and operating conditions.

Expandable Platform

Extend system capabilities with additional rectification, DC-DC conversion, and solar rectification options.

Serious Power. Compact Architecture.

Praetor Ziva brings high-capacity DC power into a compact architecture designed for installations where performance and rack space both matter.

24 kW

Maximum System Output

480 A

Maximum Output Capacity

8 Modular Power Bays

18 DC Distribution Circuits

3 kW

Power per Rectifier

Built for Network and Infrastructure Environments

Praetor Series provides scalable DC power for professional environments where availability, monitoring, and efficient system management are essential.

Battery Management

Temperature-compensated output helps provide precise battery charging as operating conditions change.

Low-Voltage Disconnect

Built-in low-voltage disconnect functionality helps protect connected battery systems.

Breaker Monitoring

DC distribution and battery disconnect breakers provide alarm capability for tripped circuit conditions.

External Alarm Integration

General-purpose digital inputs and relays allow user-configured external alarms to be incorporated into the system.

Communications

Reliable DC power for communications, network, and distributed telecommunications infrastructure.

Command & Control

Support operational systems that depend on consistent power delivery and centralized monitoring.

Public Safety

Power communications and monitoring infrastructure supporting public safety environments.

Transportation

Support network and communications equipment across transportation and traffic management infrastructure.

Utility & Infrastructure

Scalable DC power for distributed communications, monitoring, and infrastructure systems.

Government & Institutional

A flexible power platform for professional and institutional environments requiring managed DC power infrastructure.

Praetor Ziva - Technical Overview

Maximum System Output
24 kW

Maximum Output Current
480 A

Nominal DC Output
-48 VDC

Adjustable Output
-48 to -58 VDC

Architecture
Hot-Swappable / Modular / Expandable

Rectifier Capacity
3,000 W / 60 A per module

Power Bays
8

DC Distribution Circuits
18

Battery Disconnects
4 × 125 A

Low-Voltage Disconnect
500 A

AC Input Range
90–300 VAC*

Frequency
45–65 Hz

Efficiency
94%

Power Factor
0.99

Monitoring
Local UI / Web UI / SNMP v2 & v3

Operating Range
-20°C to +70°C**

*Derates below 190 VAC.
**Derates above 45°C.

Build for Today. Expand for Tomorrow.

Power requirements change. Your infrastructure should be ready to change with them.

Praetor Ziva combines high-capacity DC power, intelligent management, and an expandable architecture designed to support the needs of the site today while providing a path for future growth.

PRAETOR ZIVA
